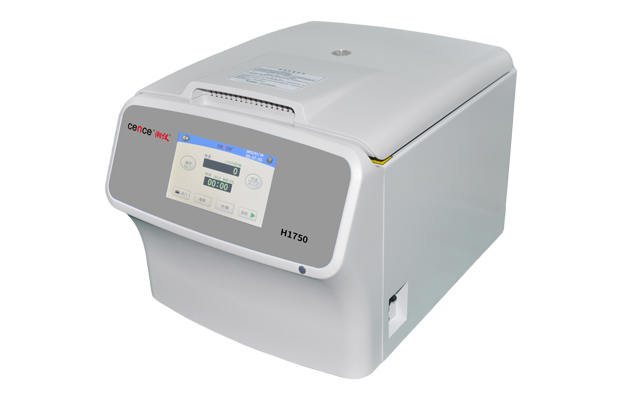

H1750R Benchtop High Speed Refrigerated Centrifuge
H1750R Benchtop high speed refrigerated centrifuge is compact with suitable height. 13 kinds of rotors with different capacity can meet widely the centrifugation application.
The centrifuge can either conduct micro tubes, PCR trip tube, microplate or 15ml/50ml falcon tube and evacuated tube centrifuging (24x1.5mL rotor with max. speed 17500rpm), which has the same good performance like the big type centrifuge.
Product Features
1. 7 inches high sensitivity (can be directly operated with gloves) and HD touch screen, easy operation with easy readout.
2. The setting and running parameters can be displayed in real time with easy and intuitive display.
3. Directly input the setting value for fast and convenient operation without adjusting the parameters back and forth for many times (compare to the key board control products).
4. RCF and speed can be automatically switched through the button, to set the speed or RCF quickly (calculate the corresponding RCF or speed by internal system).
5. Time setting range has 1s to 99min59s and 1min to 99h59min for optional.
6. Timing modes have three kinds for optional: start timing, speed timing and continuous timing.
7. Each program can be divided into 5 steps of different rpm and time setting for each step. Pressing START the 5 stages will be executed in sequence, one after the other.
8. It can save 100 user set programs and named easily accessible to the user. It would be friendly for users to select and identify for different experiment as well as convenient to realize the repeatability of the experiment.
9. 11 acceleration profiles and 12 deceleration profiles are provided. Among of them, one ACC and DEC profiles can be customer-designed based on the experiment requirements.
10. VF compressor with PID dynamic intelligent temperature control technology (Patent No. ZL201922274761.7), which is low noise and green energy saving (reduces 35% energy consumption for 10℃ temperature control), can reach accurate temperature control.
11. According to the time interval of the experiment, the sleep time of the instrument can be set (the default value is 15 minutes), which can ensure the good refrigeration effect as well as save energy and increase the service life of the instrument.
12. The precooling program can be started by one button, and the precooling parameters can be customized according to the different rotors; and precooling can be scheduled in advance, and the experiment can be carried out once entering the laboratory to save time.
13. Built in condensation water tank can avoid the condensation water gathering and prevent corrosion, which can improve the service life of the instrument.
14. The running records and diagnostic records can be saved automatically, through which can effectively check the operation of the instrument and the centrifugation of each batch sample.
15. AC frequency conversion motor is maintenance free and no carbon pollution with long service life and accurate speed accuracy (less than 10rpm).
16. Automatic identification of 13 rotors. The centrifuge can either conduct micro centrifuging(24x1.5mL rotor with max. speed 17500rpm) or easy check 4x100mL which is compatible with various adapters.
Technical Parameters
|
Model |
H750R |
|
Max. speed |
17500rpm |
|
Max. RCF |
29302xg |
|
Max. capacity |
4x100ml |
|
Speed accuracy |
±10rpm |
|
Time setting range |
1s to 99min59s or 1min to 99h59min |
|
Temp. setting range |
-20℃~40℃ |
|
Temp. control accuracy |
±1℃ |
|
Compressor |
inverter compressor unit |
|
Noise |
≤62dB (A) |
|
Power supply |
AC220±22V 50/60Hz |
|
Power consumption |
1000W |
|
Dimensions (WxDxH) |
380x660x330mm |
|
Package size (WxDxH) |
480x940x460mm |
|
Net weight |
62kg |
Rotor Options
|
Rotor No. |
Rotor type |
Max. speed(rpm) |
Max. RCF(xg) |
Capacity |
|
No.1 |
Angle rotor |
17500 |
29302 |
24x1.5/2.0ml |
|
No.2 |
Angle rotor |
15000 |
15840 |
12x5ml (0.5ml,1.5ml) |
|
No.3 |
Angle rotor |
13000 |
17370 |
12x10ml (1.5ml,5ml) |
|
No.4 |
Angle rotor |
13000 |
17947 |
6x50ml (round)(1.5ml-30ml) |
|
No.5 |
Angle rotor |
12000 |
15292 |
6x50ml(falcon) (15ml falcon) |
|
No.6 |
Angle rotor |
10000 |
10744 |
4x100ml (5ml-50ml) |
|
No.7 |
Angle rotor |
14000 |
22140 |
30x1.5ml/2.0ml |
|
No.8 |
Angle rotor |
13000 |
18525 |
48x1.5/2ml (0.2ml,0.5ml) |
|
No.9 |
Angle rotor |
13000 |
16020 |
6x8x0.2ml (PCR strip) |
|
No.10 |
Hematocrit rotor |
13000 |
17369 |
24-place capillary tubes |
|
No.11 |
Swing rotor |
13000 |
16816 |
24x1.5/2.2ml(0.2ml, 0.5ml) |
| No.12 | Angle rotor | 12000 | 13200 | 8x15ml (falcon)(5ml) |
|
No.13 |
Swing rotor |
5000 |
3773 |
4x100ml |
|
Adaptor |
5000 |
3773 |
4x1x50ml(falcon) |
|
|
4x1x50ml(round) |
||||
|
4x1x15ml(falcon) |
||||
|
4x1x15ml(round) |
||||
|
4x3x5ml(evacuated tube) |
||||
|
4x3x10ml(evacuated tube) |
||||
|
No.14 |
Microplate rotor |
4000 |
2200 |
2x2x96well (adaptors can be customized) |
| No.15 | Angle rotor | 18500 | 23797 | 12x1.5/2.2ml (0.2ml,0.5ml) |
